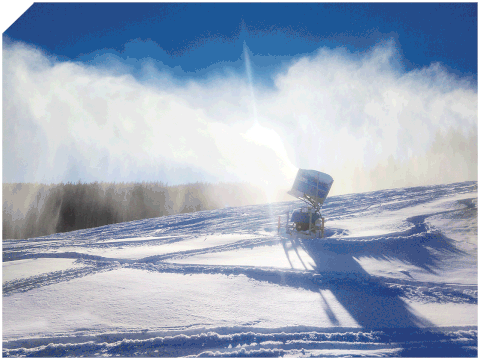

The snowmaking systems of the BK Series, which meet the economical requirements of our time, feature a tremendous snow-making capacity at a total power consumption of only 16 kW. Permanently innovative development and economical thinking are key drivers of the BK Series. The increasing number of satisfied customers, and snow safety solutions at events for example the Ski Flying World Championships 2016 at the Kulm, confirm the pioneering way of Snow Industries.

SnowGUN
BK manus

designed for areas above -1 °C:

❆ Powder snow
❆ Limit temperature from -1 °C
❆ Manuel (manus) snow gun
❆ 3 different programs, manual excecuting
❆ Intergrated temperature release
❆ snow production only with air and water
❆ Throwing 50 m
❆ Up to 550 l/min

The IAG manus BK50 is a manually operated snow
gun. About the hydrants and three valves of the desired
water fl ow rate is adjusted manually. Due to the low
energy consumption, a snow start starts at a temperature
of -1° FK and air temperature below 0 °C with a
fl ow rate of 100 l/min.

Wasserdurchflussregelung Snow production with manual
water flow control


❆ Manual control of the water flow through

   three switching stages
❆ Valve for water release of the wreaths on the machine
❆ Pressure gauge to monitor the pressure on the machine
❆ Snow from -1° wet bulb temperature
❆ Integrated temperature release
❆ Throwing 50 m
❆ 2” Kamlock water coupling

SnowGUN
BK genius

designed for areas above 0 °C:

❆ Powder snow
❆ Limit temperature from -1° WBT
❆ Fully automatic snow gun
❆ 10 different programs
   fully automatic + manual excecuting
❆ Intergrated weather station
❆ Snow production only with air and water
❆ Throwing 50 m
❆ 550 l/min

The IAG genius BK50 is a fully automatic snow
gun. With a temperature and humidity sensor, the
appropriate amount of water is released. About the
snow program the snow quality from 350 kg / m³ to
700kg / m³ is adjustable. In cause of the low energy
Consumption, a snow start begins at a temperature
of -1° FK and air temperature below 0 °C with a fl ow
rate of 100 l/min.

Snow production with fully automatic water flow control


❆ Selectable between 10 snow programs
   (from 350 kg/m³ to 700 kg/m³)
❆ Snow from -1° wet bulb temperature
❆ Integrated Weather Station
❆ Throwing 50 m
❆ 2“ Kamlock water coupling

SnowGUN

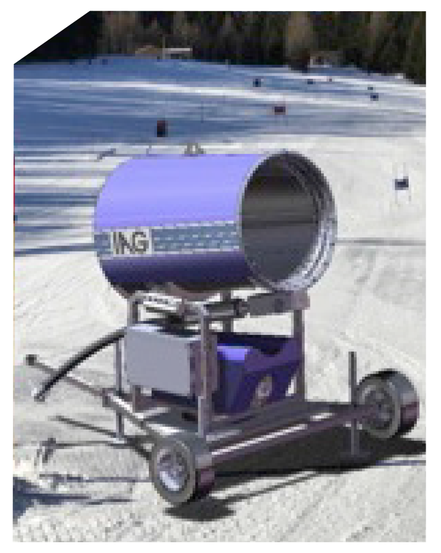

BK 7 – the little

designed for areas above -1 °C:

❆ Powder snow
❆ Limit temperature from -2° WBT
❆ Fully automatic snow gun
❆ Snow production only with air and water
❆ Throwing 30 m
❆ Up to 270 l/min

 The IAG BK7 is a manually operated snowgun.
The BK7 has a perfectly optimized, long and slim throw
area. It is characterized by low power consumption,
maximum snow power and low weight. The size of the
BK7 is optimized to the minimum, so that it also can be
placed on tight spaces by a snowmobile. The required
water output is manually set via the hydrant installed
on site and two valves on the machine. Due to the low
energy consumption, a snow start is useful with an FK
temperature of -1 °C and air temperature below 0 °C.

Snow production with manual
water flow control


❆ Manual control of the water fl ow through
   three switching stages
❆ Valve for water release of the wreaths on the machine
❆ Pressure gauge to monitor the pressure on the machine
❆ Snow from -2 ° wet bulb temperature
❆ Throwing 30 m
❆ 2“ Kamlock water coupling
